How does Radio Frequency Identification technology work?

Radio Frequency Identification (RFID) is an automatic identification technology. It uses radio frequency for non-contact two-way data communication to read/write electronic tags, achieving target identification and data exchange. Considered a key 21st-century technology, it connects devices via electromagnetic waves, with data exchange methods like load modulation (near field) and backscatter modulation (far field) based on communication distance.

1. Core Principle: Non-Contact Identification

The basic working principle is straightforward:

Passive tags draw energy from the reader’s radio frequency signal to transmit stored data.
Active tags use their own power to send signals directly to the reader.
A complete RFID system includes three parts:

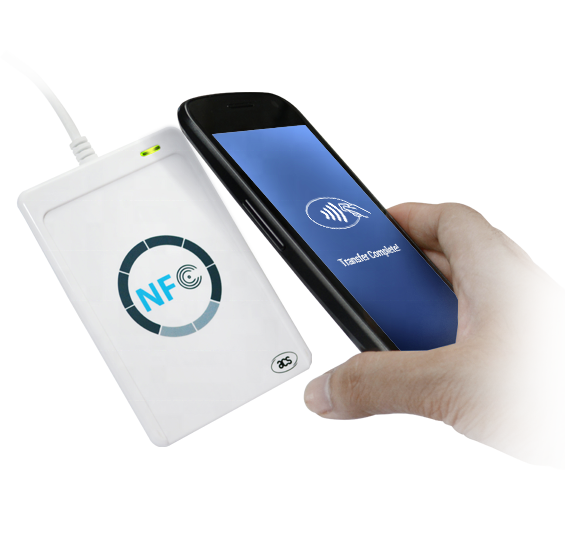

Reader: Emits radio waves, drives tag data transmission, and processes responses.

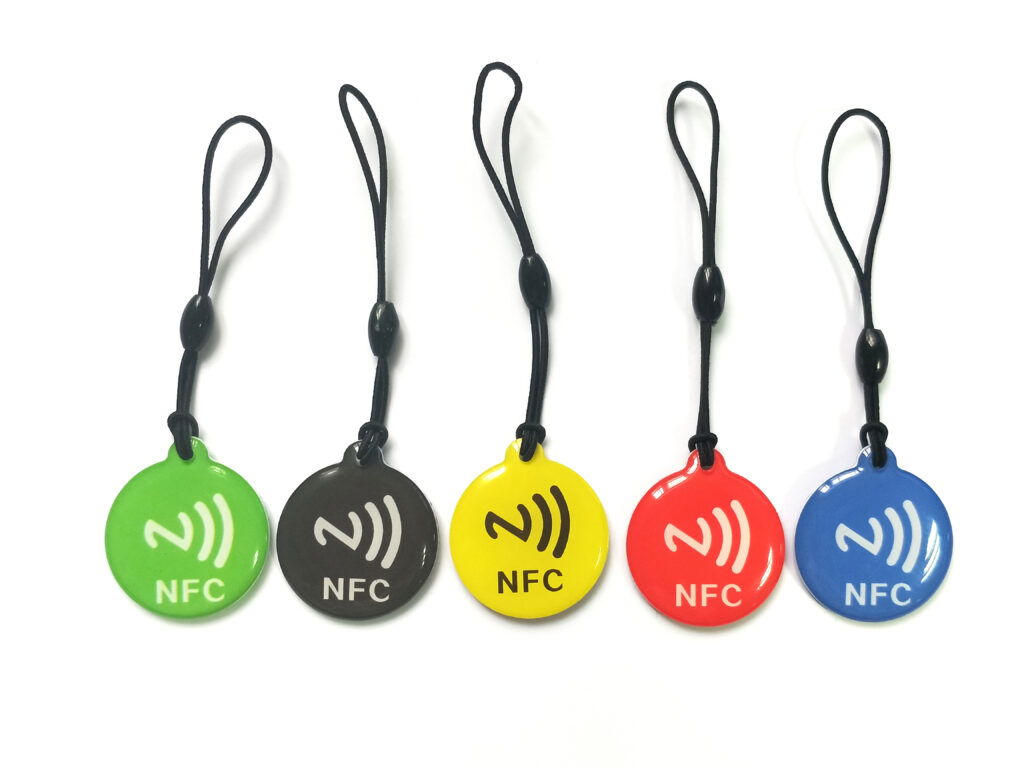

Electronic tag (transponder): Stores and sends identification information.
Software system: Manages data processing and communication via Ethernet/WLAN.

Low-frequency RFID uses inductive coupling for short-range communication, while high-frequency systems rely on backscatter coupling for longer distances (e.g., logistics tracking).

2. Tag Classification by Power Source

Passive Tags (Most Common)

No internal battery; powered by the reader’s signal.
Advantages: Small size, low cost (cents to dollars), long lifespan.
Disadvantages: Short range (cm to 1m).
Uses: Bus cards, library books, retail anti-theft tags.

Active Tags (Long-Range)

Self-powered with batteries, actively transmitting signals.
Advantages: Range up to 100m, high read speeds (1,700 tags/sec).
Disadvantages: Larger size, higher cost ($10–$100).
Uses: ETC toll systems, asset tracking.

Semi-Active Tags (Balanced Solution)

Low-power design; dormant until activated by a low-frequency signal (125kHz), then use high-frequency (2.4GHz) for data transfer.
Balances range (10–50m) and battery life.
Uses: Precision positioning in warehouses or healthcare.

3. Advantages Over Barcodes

Feature	RFID	Barcode
Contact Needed	No (works through obstacles)	Yes (requires line of sight)
Data Capacity	Up to 8KB (rewritable)	~20 characters (fixed)
Batch Reading	Hundreds of tags simultaneously	One at a time
Durability	Waterproof, anti-magnetic	Easily damaged

Key Edge: RFID eliminates manual scanning, ideal for large-scale inventory (e.g., Amazon warehouses) and harsh environments.

4. Real-World Applications

Transportation

ETC for tolls, contactless transit cards, and shared bike unlocking.

Identity & Security

Passports, ID cards, and access control systems (e.g., office building entry).

Logistics & Retail

Real-time package tracking (DHL/FedEx), smart shelves for inventory, and anti-theft tags (Alarm when undemagnetized goods leave).

Food & Healthcare

Traceability for meat, pharmaceuticals, and blood samples via end-to-end supply chain monitoring.

Asset Management

Library book tracking (simplified inventory scans) and industrial equipment localization.

5. Future Trends

Miniaturization & Cost Reduction

Thinner, cheaper tags (eventually <$0.10) for single-use items like fruits or clothing.

High-Frequency Dominance

Ultra-high frequency (UHF, 860–960MHz) systems expanding for long-range warehouse automation and smart retail.

Networking & Integration

Multi-reader networks for real-time tracking (e.g., airport baggage systems) and cloud-connected data management.

Mobile-Centric Use

NFC (a subset of RFID) in smartphones evolving to support high-frequency tag operations, enabling “tap-to-pay” and digital key functions.

In Summary

RFID acts as a wireless ID for objects, enabling seamless, remote identification and data exchange. While challenges like cost and metal/liquid interference remain, its versatility ensures growing integration in daily life—from smart homes to global supply chains. The next time you tap a card or track a package, you’re already experiencing RFID’s invisible impact.
