UHF On Metal RFID Tags For Vehicle License Plates
UHF On Metal RFID Tags For Vehicle License Plates enable efficient tracking and asset management, offering high-temperature tolerance, and seamless integration.
Description

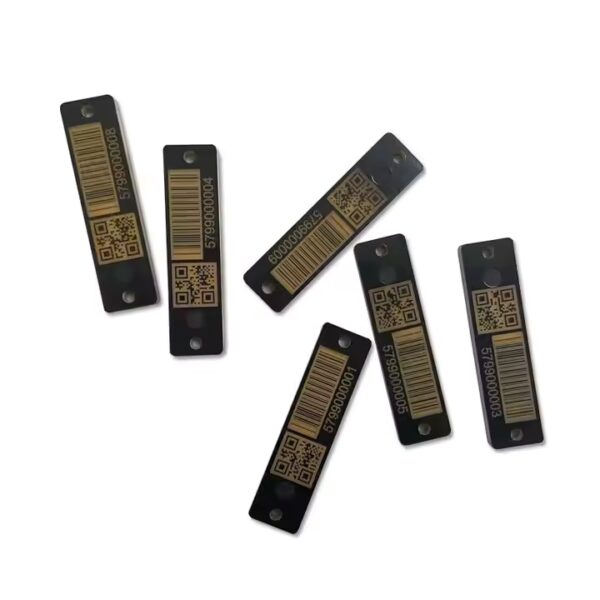

UHF On Metal RFID Tags For Vehicle License Plates
UHF On Metal RFID Tags For Vehicle License Plates are designed for efficient tracking and monitoring, suitable for vehicle identification and management. These durable tags can be seamlessly integrated with RFID systems to achieve safe and automated identification, improve the efficiency of access control and fleet management.
Product Features
- Compliant with ISO18000-6C standard: ensure product compatibility and stable performance.
- Applicable to various surfaces: can be pasted on metal, plastic and liquid surfaces, widely applicable.
- IP68 protection level: waterproof and anti-collision, suitable for use in extreme environments.
- High temperature tolerance: can withstand up to 250°C high temperature (in oil), ensuring long-term stable operation.
Technical Specifications
Product Name | UHF On Metal RFID Tags For Vehicle License Plates |
---|---|
Antenna Material | AL + PET Film |
Chip | UHF Ucode 8 |
Surface Material | PCB, ABS, Anti-metal, etc. |
Available Chips | H9, Monza R6, Ucode, etc. |
Frequency | 860 – 960 MHz |
Protocol | ISO 18000-6C/B |
Operating Distance | 1 – 10 m (depending on the reader) |
User Memory | Based on chip |
Writable Capability | Based on chip |
Data Retention Time | > 10 years |
Printing Process | CMYK |
Surface Finish | Glossy |
Customizable | Yes |
Environment | |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -25°C to +50°C |
Applications | Logistics tracking, warehouse management, identity authentication, attendance management, one-card payment, product identification, etc. |
Packaging | 2000 – 5000 pieces/roll, or individual |
Dimensions | 70 x 20 x 3.6 mm, hole diameter 4 mm |
Color | Standard black; other colors available upon customization |
Material Weight | 11 g |
Installation Methods | – Rivet Installation: Tag hole diameter 2 mm, can be procured
– Screw Installation: Tag hole diameter 2 mm, M2.0 screws can be used – Adhesive Installation: 3M imported thin/thick adhesive, custom based on client needs – Liquid Glue Installation: Using industrial AB glue |
Chip | Alien H3 |
Frequency Range | 902 – 928 MHz; 866 – 868 MHz |
EPC Standards | ISO 18000-6C, EPC Global C1 Gen2 |
Chip Capacity | EPC section: 96 bits (expandable) to 480 bits, USER section: 512 bits, TID section: 64 bits |
Data Storage | 10 years or 100,000 write cycles |
RFID Specifications | Read distance: 10 m (when attached to metal surface, 4W EIRP reader)<br/> Read distance: 6 m (R2000 POS, 30 dbm) <br/> (Actual performance may vary based on environment and testing equipment) |
Ingress Protection | IP68 |
Use Cases | Micro device management, small device management, asset management, etc. |
Personalized Customization | Pre-written codes, laser marking, logo printing, color customization, etc. |
Application Areas
- Asset Tracking: Used for heavy industrial asset management and metal asset tracking.
- Logistics and Automotive Industry: Improve vehicle management efficiency and safety.
- Oil, Gas and Mining Industry: Enhance equipment and operation monitoring capabilities.
- Automated Production Line: Improve production efficiency and reduce labor costs.
Choose our RFID Tags For Vehicle to optimize your vehicle management system and ensure efficient and safe automatic identification.
Frequently Asked Questions (FAQ)
1. Why choose our RFID Tags For Vehicle?
As one of the top five RFID tag manufacturers in China, we have over 15 years of experience in providing high-quality, durable solutions designed for vehicle supervision (such as container truck transportation) to ensure efficient and economical operation of enterprises.
2. How is the protection performance of the tag?
Our RFID Tags For Vehicle are IP68 rated, not only waterproof and dustproof, but also can withstand extreme environments, making them ideal for vehicles that are driven outdoors for long periods of time and sometimes encounter inclement weather.
3. How are the high temperature resistance of the RFID Tags For Vehicle?
This RFID tag can withstand temperatures up to 250°C and can work stably for 60 minutes even in oil, adapting to the special needs of high-temperature industrial environments.
4. How is data storage and durability?
The RFID Tags For Vehicle support more than 10 years of data preservation and can perform up to 100,000 read and write operations to ensure data integrity in long-term use.
